ผลิตภัณฑ์ Projector Laser

Projector Laser

LS740HD

5,000 ANSI Lumens 1080p Laser Installation Projector

3rd generation laser phosphor technology with up to a 30,000-hour lifespan
5,000 ANSI Lumens offering bright images in any environment
Up to 300" ultra large screen with lower cost-per-inch
Compact size and light weight reducing cost of transportation and installation
Installation flexibility: 1.3x optical zoom, H/V keystone, 360° projection, and portrait mode

LS740HD

5,000 ANSI Lumens 1080p Laser Installation Projector

3rd generation laser phosphor technology with up to a 30,000-hour lifespan
5,000 ANSI Lumens offering bright images in any environment
Up to 300" ultra large screen with lower cost-per-inch
Compact size and light weight reducing cost of transportation and installation
Installation flexibility: 1.3x optical zoom, H/V keystone, 360° projection, and portrait mode

ข้อมูลจำเพาะ

Projection System: 0.65″ 1080P

Native Resolution: 1920×1080

Brightness: 5000 (ANSI Lumens)

Brightness (Center Lumens): 5500

Contrast Ratio: 3000000:1

Display Color: 1.07 Billion Colors

Light Source Type: Laser Phosphor

Light Source Life (hours) with Normal Mode: 20000

Light Source Life (hours) with SuperEco Mode: 30000 (Eco)

Lens: F=2.43-2.78, f=16.90-21.61mm

Projection Offset: 132%+/-10%

Throw Ratio: 1.13-1.47

Optical Zoom: 1.3X

Digital Zoom: 0.8x-2.0x

Image Size: 30″-300″

Throw Distance: 0.75-9.76m

(100″@2.50m)

Keystone: H:+/-30° , V:+/-30°

Audible Noise (Normal): 30dB

Audible Noise (Eco) : 24dB

Input Lag: 49.5ms

Resolution Support: VGA(640 x 480) to WUXGA RB(1920 x 1200)

*RB-Reduced Blanking

HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Horizontal Frequency: 15K-102KHz

Vertical Scan Rate: 24-120Hz

Power Supply Voltage: Power adaptor:

Input: 100~240V

Output: 19.5VDC / 11.79A

Power Consumption: Normal: 210W

Standby: <0.5W

Operating Temperature: 0~40℃

Carton: Brown

Net Weight: 3.00kg

Gross Weight: 4.70kg

Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm

Packing Dimensions: 400x280x155mm

OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese,Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Hungarian, Norsk, total 23 languages

User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages

ข้อมูลจำเพาะ

Projection System: 0.65″ 1080P

Native Resolution: 1920×1080

Brightness: 5000 (ANSI Lumens)

Brightness (Center Lumens): 5500

Contrast Ratio: 3000000:1

Display Color: 1.07 Billion Colors

Light Source Type: Laser Phosphor

Light Source Life (hours) with Normal Mode: 20000

Light Source Life (hours) with SuperEco Mode: 30000 (Eco)

Lens: F=2.43-2.78, f=16.90-21.61mm

Projection Offset: 132%+/-10%

Throw Ratio: 1.13-1.47

Optical Zoom: 1.3X

Digital Zoom: 0.8x-2.0x

Image Size: 30″-300″

Throw Distance: 0.75-9.76m

(100″@2.50m)

Keystone: H:+/-30° , V:+/-30°

Audible Noise (Normal): 30dB

Audible Noise (Eco) : 24dB

Input Lag: 49.5ms

Resolution Support: VGA(640 x 480) to WUXGA RB(1920 x 1200)

*RB-Reduced Blanking

HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Horizontal Frequency: 15K-102KHz

Vertical Scan Rate: 24-120Hz

Power Supply Voltage: Power adaptor:

Input: 100~240V

Output: 19.5VDC / 11.79A

Power Consumption: Normal: 210W

Standby: <0.5W

Operating Temperature: 0~40℃

Carton: Brown

Net Weight: 3.00kg

Gross Weight: 4.70kg

Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm

Packing Dimensions: 400x280x155mm

LS740W

5,000 ANSI Lumens WXGA Laser Installation Projector

3rd generation laser phosphor technology with up to a 30,000-hour lifespan
5,000 ANSI Lumens offering bright images in any environment
Up to 300" ultra large screen with lower cost-per-inch
Compact size and light weight reducing cost of transportation and installation
Installation flexibility: 1.3x optical zoom, H/V keystone, 360° projection, and portrait mode

LS740W

5,000 ANSI Lumens WXGA Laser Installation Projector

3rd generation laser phosphor technology with up to a 30,000-hour lifespan
5,000 ANSI Lumens offering bright images in any environment
Up to 300" ultra large screen with lower cost-per-inch
Compact size and light weight reducing cost of transportation and installation
Installation flexibility: 1.3x optical zoom, H/V keystone, 360° projection, and portrait mode

ข้อมูลจำเพาะ

Projection System: 0.65″ WXGA

Native Resolution: 1280×800

Brightness: 5000 (ANSI Lumens)

Brightness (Center Lumens): 6000

Contrast Ratio: 3000000:1

Display Color: 1.07 Billion Colors

Light Source Type: Laser Phosphor

Light Source Life (hours) with Normal Mode: 20000

Light Source Life (hours) with SuperEco Mode: 30000 (Eco)

Lens: F=2.43-2.78, f=16.90-21.61mm

Projection Offset: 124%+/-10%

Throw Ratio: 1.18-1.54

Optical Zoom: 1.3X

Digital Zoom: 0.8x-2.0x

Image Size: 30″-300″

Throw Distance: 0.77-9.98m

(100″@2.54m)

Keystone: H:+/-30° , V:+/-30°

Audible Noise (Normal): 30dB

Audible Noise (Eco) : 24dB

Input Lag: 49.5ms

Resolution Support: VGA(640 x 480) to WUXGA RB(1920 x 1200)

*RB-Reduced Blanking

HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Horizontal Frequency: 15K-102KHz

Vertical Scan Rate: 24-120Hz

Power Supply Voltage: Power adaptor:

Input: 100~240V

Output: 19.5VDC / 11.79A

Power Consumption: Normal: 210W

Standby: <0.5W

Operating Temperature: 0~40℃

Carton: Brown

Net Weight: 3.00kg

Gross Weight: 4.70kg

Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm

Packing Dimensions: 400x280x155mm

ข้อมูลจำเพาะ

Projection System: 0.65″ WXGA

Native Resolution: 1280×800

Brightness: 5000 (ANSI Lumens)

Brightness (Center Lumens): 6000

Contrast Ratio: 3000000:1

Display Color: 1.07 Billion Colors

Light Source Type: Laser Phosphor

Light Source Life (hours) with Normal Mode: 20000

Light Source Life (hours) with SuperEco Mode: 30000 (Eco)

Lens: F=2.43-2.78, f=16.90-21.61mm

Projection Offset: 124%+/-10%

Throw Ratio: 1.18-1.54

Optical Zoom: 1.3X

Digital Zoom: 0.8x-2.0x

Image Size: 30″-300″

Throw Distance: 0.77-9.98m

(100″@2.54m)

Keystone: H:+/-30° , V:+/-30°

Audible Noise (Normal): 30dB

Audible Noise (Eco) : 24dB

Input Lag: 49.5ms

Resolution Support: VGA(640 x 480) to WUXGA RB(1920 x 1200)

*RB-Reduced Blanking

HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Horizontal Frequency: 15K-102KHz

Vertical Scan Rate: 24-120Hz

Power Supply Voltage: Power adaptor:

Input: 100~240V

Output: 19.5VDC / 11.79A

Power Consumption: Normal: 210W

Standby: <0.5W

Operating Temperature: 0~40℃

Carton: Brown

Net Weight: 3.00kg

Gross Weight: 4.70kg

Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm

Packing Dimensions: 400x280x155mm

LS711HD

4,200 ANSI Lumens 1080p Short Throw Laser Installation Projector

3rd generation laser phosphor technology with up to a 30,000-hour lifespan
4,200 ANSI Lumens offering bright images in any environment
High native contrast ratio achieved through Texas Instruments 0.65" DMD chip
0.49 short throw for seamless edge-blending without shadows
Compact size and light weight reducing cost of transportation and installation
Installation flexibility: H/V keystone correction, 360° projection, and portrait mode

LS711HD

4,200 ANSI Lumens 1080p Short Throw Laser Installation Projector

3rd generation laser phosphor technology with up to a 30,000-hour lifespan
4,200 ANSI Lumens offering bright images in any environment
High native contrast ratio achieved through Texas Instruments 0.65" DMD chip
0.49 short throw for seamless edge-blending without shadows
Compact size and light weight reducing cost of transportation and installation
Installation flexibility: H/V keystone correction, 360° projection, and portrait mode

ข้อมูลจำเพาะ

Projection System: 0.65″ 1080p

Native Resolution: 1920×1080

Brightness: 4200 (ANSI Lumens)

Brightness (Center Lumens): 4800

Contrast Ratio: 3000000:1

Display Color: 1.07 Billion Colors

Light Source Type: Laser Phosphor

Light Source Life (hours) with Normal Mode: 20000

Light Source Life (hours) with SuperEco Mode: 30000 (Eco)

Lens: F=2.8, f=7.51mm

Projection Offset: 132%+/-10%

Throw Ratio: 0.496

Optical Zoom: Fixed

Digital Zoom: 0.8x-2.0x

Image Size: 35″-300″

Throw Distance: 0.38-3.29m

(100″@1.10m)

Keystone: H:+/-15° , V:+/-15°

Audible Noise (Normal): 30dB

Audible Noise (Eco): 24dB

Input Lag: 49.5ms

Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200)

*RB-Reduced Blanking

HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Horizontal Frequency: 15K-102KHz

Vertical Scan Rate: 24-120Hz

Power Supply Voltage: Power adaptor:

Input: 100~240V

Output: 19.5VDC / 11.79A

Power Consumption: Normal: 210W

Standby: <0.5W

Operating Temperature: 0~40℃

Carton: Brown

Net Weight: 3.15kg

Gross Weight: 4.88kg

Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm

Packing Dimensions: 400x280x155mm

OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Greek, Norsk. Total 23 languages

ข้อมูลจำเพาะ

Projection System: 0.65″ 1080p

Native Resolution: 1920×1080

Brightness: 4200 (ANSI Lumens)

Brightness (Center Lumens): 4800

Contrast Ratio: 3000000:1

Display Color: 1.07 Billion Colors

Light Source Type: Laser Phosphor

Light Source Life (hours) with Normal Mode: 20000

Light Source Life (hours) with SuperEco Mode: 30000 (Eco)

Lens: F=2.8, f=7.51mm

Projection Offset: 132%+/-10%

Throw Ratio: 0.496

Optical Zoom: Fixed

Digital Zoom: 0.8x-2.0x

Image Size: 35″-300″

Throw Distance: 0.38-3.29m

(100″@1.10m)

Keystone: H:+/-15° , V:+/-15°

Audible Noise (Normal): 30dB

Audible Noise (Eco): 24dB

Input Lag: 49.5ms

Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200)

*RB-Reduced Blanking

HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Horizontal Frequency: 15K-102KHz

Vertical Scan Rate: 24-120Hz

Power Supply Voltage: Power adaptor:

Input: 100~240V

Output: 19.5VDC / 11.79A

Power Consumption: Normal: 210W

Standby: <0.5W

Operating Temperature: 0~40℃

Carton: Brown

Net Weight: 3.15kg

Gross Weight: 4.88kg

Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm

Packing Dimensions: 400x280x155mm

OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Greek, Norsk. Total 23 languages

ข้อมูลผลิตภัณฑ์อื่นๆที่เกี่ยวข้อง

ViewSonic 2

Development

Training

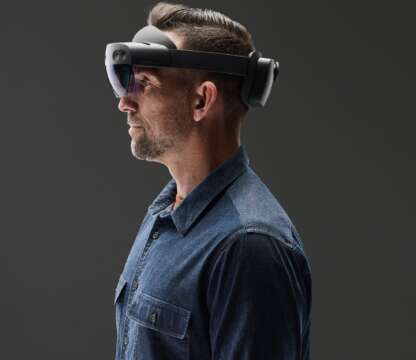

HoloLens 2

จบครบ Solutions AR VR MR นึกถึงเรา Sustainable Solution ครบเครื่องเรื่อง Solutions

ข้อมูลผลิตภัณฑ์อื่นๆที่เกี่ยวข้อง

ViewSonic 2

Development

Training

HoloLens 2

จบครบ Solutions AR VR MR นึกถึงเรา Sustainable Solution ครบเครื่องเรื่อง Solutions

หน้าแรก
ผลิตภัณฑ์
บริการ
ผลงาน
บทความ
ติดต่อเรา

Video Conference
AR work instruction
MR Remote Meeting
Digital Twin
VR / MR Training
As-built 3D Scan

Projector Laser

Projector Laser

LS740HD

5,000 ANSI Lumens 1080p Laser Installation Projector

LS740HD

5,000 ANSI Lumens 1080p Laser Installation Projector

ข้อมูลจำเพาะ

ข้อมูลจำเพาะ

LS740W

5,000 ANSI Lumens WXGA Laser Installation Projector

LS740W

5,000 ANSI Lumens WXGA Laser Installation Projector

ข้อมูลจำเพาะ

ข้อมูลจำเพาะ

LS711HD

4,200 ANSI Lumens 1080p Short Throw Laser Installation Projector

LS711HD

4,200 ANSI Lumens 1080p Short Throw Laser Installation Projector

ข้อมูลจำเพาะ

ข้อมูลจำเพาะ

ข้อมูลผลิตภัณฑ์อื่นๆที่เกี่ยวข้อง

ViewSonic 2

Development

Training

HoloLens 2

จบครบ Solutions AR VR MR นึกถึงเรา Sustainable Solution ครบเครื่องเรื่อง Solutions

ข้อมูลผลิตภัณฑ์อื่นๆที่เกี่ยวข้อง

ViewSonic 2

Development

Training

HoloLens 2

จบครบ Solutions AR VR MR นึกถึงเรา Sustainable Solution ครบเครื่องเรื่อง Solutions

Copyright @ sustain-solution 2024 All Right Reserved
